What Happens in an Industrial Insulation Energy Survey

An industrial insulation energy survey records the surface temperatures of pipework, vessels and equipment across a site, calculates the heat each surface is losing using BS EN ISO 12241, and turns the results into a ranked schedule of insulation repairs, with the annual cost of each loss and the payback period for fixing it attached to every item.

That is the short answer. Here is what it looks like in practice, and why plants that have run for years without one are usually surprised by what it finds.

Definition. An insulation energy survey is a systematic, measured inspection of the thermal insulation on an industrial site or system. It identifies bare surfaces, damaged or degraded insulation, and areas where the installed system no longer performs to its original specification, then quantifies what each one costs in lost energy.

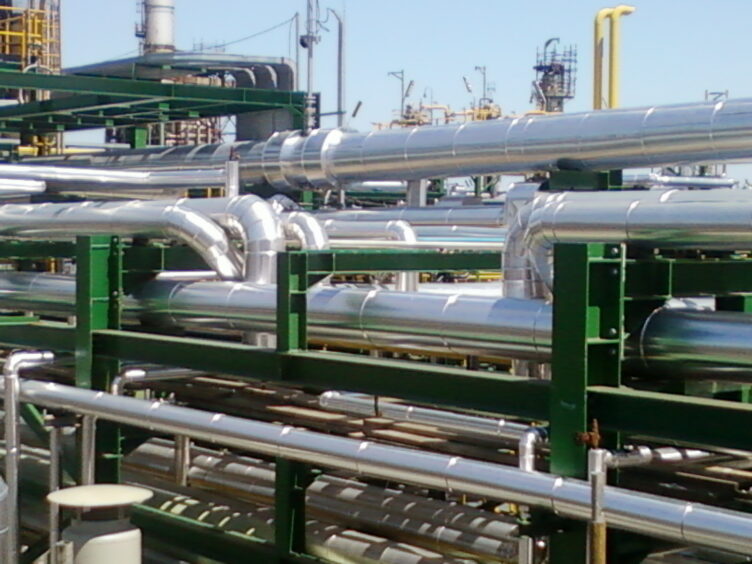

The money is leaving in plain sight

Heat comes off a bare steam line at a steady rate, hour after hour, like water through a showerhead that nobody can turn off. An uninsulated valve is energy you are paying for and never use. And insulation that looks intact from the walkway can be performing at a fraction of its design value, because mineral wool that has taken on moisture loses most of its resistance while the cladding over it still looks fine.

This is not a small or unusual problem. The European Industrial Insulation Foundation has run around 3,500 of its TIPCHECK insulation audits across European industry. Three quarters of them led to actual insulation investment, and the payback periods for the projects those audits triggered were in most cases two years or less. One published survey of 180 audits identified more than 750,000 MWh of savings per year, worth at least €23.5 million, and a carbon reduction equal to the annual emissions of almost 110,000 cars.

Those numbers belong to other people’s plants. The purpose of a survey is to find out what the equivalent numbers are on yours.

What the surveyor does on the day

The scope is agreed before anyone arrives. A survey can cover a full site or a single system, a boiler house, a condensate return network, a set of process vessels, and some of the most useful surveys are the narrow ones carried out before a planned maintenance shutdown, so the findings can be actioned while the plant is already down.

The plant stays running. Heat loss has to be measured with the process at normal operating conditions, because a cold pipe tells you nothing, so there is no shutdown and no interruption to production.

On the walkdown, the surveyor works item by item and records the evidence:

What gets recorded	Why it matters
Surface temperature, by thermal imaging and contact measurement	This is the raw signal. The hotter the surface, the faster the energy is leaving
Operating temperature of the line or vessel	Sets the driving force behind the loss and identifies what the insulation should be achieving
Ambient conditions	The same surface loses heat faster in an exposed, windy location than in a plant room
Surface area of each item	Converts a temperature reading into a quantity of energy
Insulation type, thickness and condition	Separates surfaces that were never insulated from systems that were installed properly and have degraded since, which need different remedies

Alongside the measurements, the surveyor notes the things a camera alone will not explain. Crushed lagging where a walkway was used as a shortcut. Missing sections around a valve that was serviced and never re-jacketed. Cladding joints that have opened and let the weather in. These notes matter later, because the remedy for each fault is different and so is its cost.

How the heat loss becomes a number

The calculations are carried out to BS EN ISO 12241, the standard method for working out how fast heat moves through a thermal insulation system on industrial and building services installations. In plain terms, the standard takes what was measured on the day, the surface temperature, the operating temperature, the ambient conditions, the geometry and the insulation present, and produces the rate of loss for each item.

From there the arithmetic is deliberately simple to follow. The rate of loss becomes an annual quantity of energy, the annual energy becomes a fuel cost at current rates, and the fuel cost sits next to the estimated cost of the remedial insulation. Divide one by the other and you have the payback period. Every figure traces back to a reading taken on your plant, with its assumption shown, so the person who approves the budget can check the working rather than take anyone’s word for it.

The report is a ranked list of where to spend first

The output is a working document, not a report that sits in a drawer. Each surveyed item is listed with its current heat loss, the calculated saving from putting it right, the estimated cost of the work, and the payback period, ranked so the fastest returns sit at the top.

That structure is deliberate. Most insulation budgets fail at the approval stage, not the engineering stage, and a ranked schedule with the working shown is what gets them through. The same calculation documentation serves as evidence for ISO 50001 energy management systems, carbon reduction programmes and net zero reporting, so the survey earns its keep twice.

What tends to happen next

Most survey work leads into a remediation programme, and there is an advantage in the surveyor and the installer being the same firm. Nothing is lost in handover, and what the survey identifies is exactly what gets specified and installed.

At a Kent energy from waste plant, Fenix surveyed and quantified the heat losses before starting the insulation work. After delivery, the client set BS EN 17956 energy Class C as the minimum standard for the next section of plant. That is the direction the whole trade is moving, toward measured, documented insulation performance with an energy class attached, the way an appliance has one. A survey is how a plant finds out where it stands today. Our article on EN 17956 and the future of industrial insulation explains the classes in full.

Frequently asked questions

Does the plant need to shut down for an insulation energy survey?

No. The survey is carried out with the plant at normal operating conditions, because heat loss can only be measured while the process is hot. Measurement is by thermal imaging and contact reading from outside the system, so production is not interrupted.

How long does an insulation energy survey take?

It depends on the scope, which is agreed before the survey is booked. A single system such as a boiler house is a much smaller exercise than a full site audit, and the scope can be set to match a maintenance window so findings can be actioned while the plant is already down.

What savings should we expect from an insulation survey?

No honest surveyor will promise a figure before measuring, and Fenix does not guarantee savings or payback. What the published evidence shows is encouraging. Across the European TIPCHECK programme, most insulation projects initiated by an audit paid back within two years. A Fenix report states the calculated saving and payback for each item individually, with the assumptions shown, so every claim can be checked.

Is a survey worth doing if the insulation looks fine?

Appearance is not performance. Cladding can look intact while the insulation beneath it is wet, crushed or missing, and a surface you cannot comfortably hold your hand on is losing energy whether or not it looks tidy. The survey replaces impressions with measurements, which is the only reliable basis for deciding whether to spend or not.

Written by the Fenix engineering team, specialist industrial insulation contractors working across UK process, power and M&E projects.
